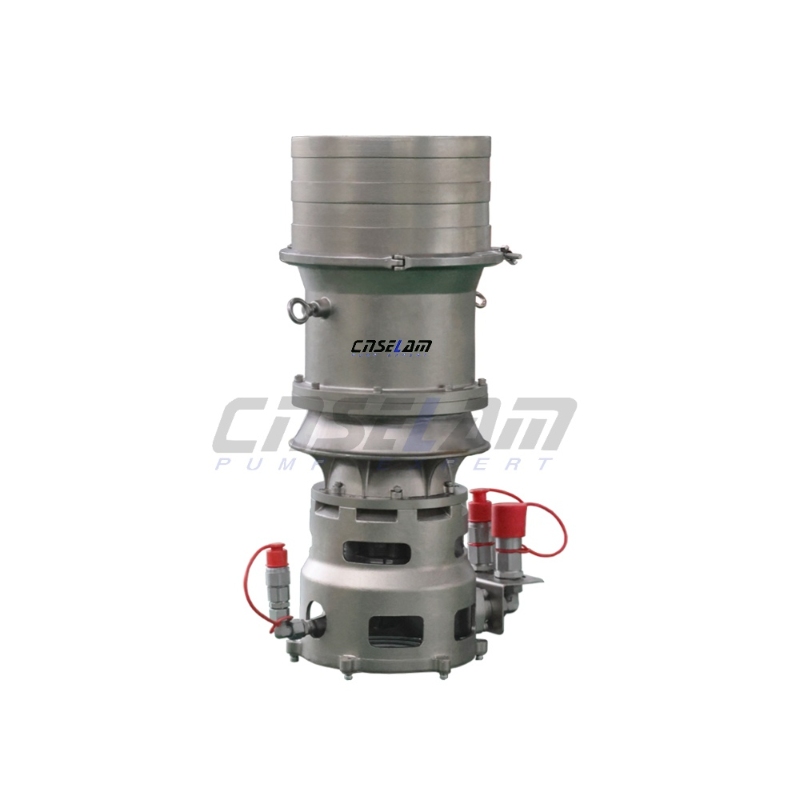

Large Flow Hydraulic Submersible Pump with Pontoon

CNSELAM HSQWP series ‌hydraulic axial flow pump‌ is a type of fluid machinery that is widely used in agricultural irrigation, urban drainage, power industry and other fields.

نموذج :
HSQWP300
قطر المخرج (بوصة) :
12
الحد الأقصى لمعدل التدفق (م³/ساعة) :
1000-1200
الحد الأقصى للرأس (م) :
4-8
معدل التدفق الهيدروليكي (لتر/دقيقة) :
160-180
الضغط (بار) :
190-230

استفسر الآن

تفاصيل المنتج

The key structural feature of an axial-flow pump is its impeller design. The impeller's blades are arranged in an axial flow pattern, meaning the liquid flows along the axis. The inlet and outlet are aligned, resulting in a simple, compact structure and easy maintenance. Furthermore, the impeller's rotation generates less centrifugal force, resulting in smoother operation and less noise and vibration than centrifugal pumps.

FEATURES

1.CNSELAM HSQWP series hydraulic axial flow pumps adopt axial flow or semi-open design and are characterized by high flow rates.

2.Compared with other pump types, hydraulic axial flow pumps are small in size, can provide greater flow, have a high impurity passing rate, and can greatly reduce the pump pressure and power consumption of the hydraulic system.

SPECIFICATION

Model	Outlet diameter (inch)	Flow rate (m³/h)	Head (m)	Hydraulic flow rate (lpm)	Pressure (bar)
HSQWP150D	6	180-230	6-11	50-60	155-172
HSQWP200D	8	500-600	11-15	60-80	172-180
HSQWP200	8	500-600	5-10	60-80	172-180
HSQWP250	10	600-1000	5-10	160-180	250-300
HSQWP300	12	1000-1200	4-8	160-180	190-230
HSQWP400~HSQWP600	16", 20", 24"	1800-3600	4-8	250-300	220-330
HSQWP750~HSQWP800	30", 32"	4600-7200	2-6	280-300	280-350
HSQWP1000~HSQWP1200	40", 42", 48"	11000-16200	2-5	500-600	280-350
