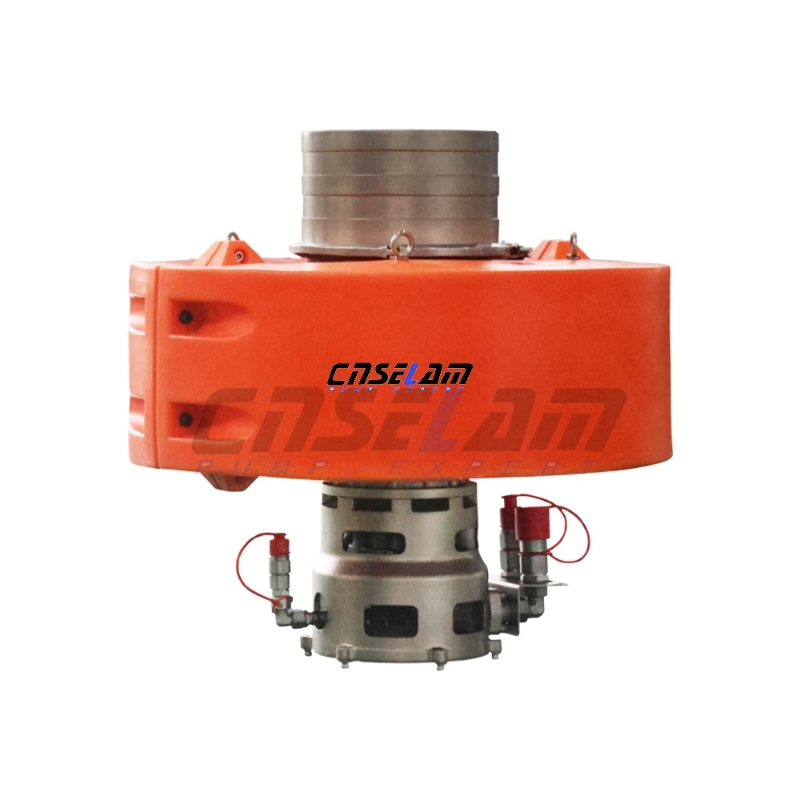

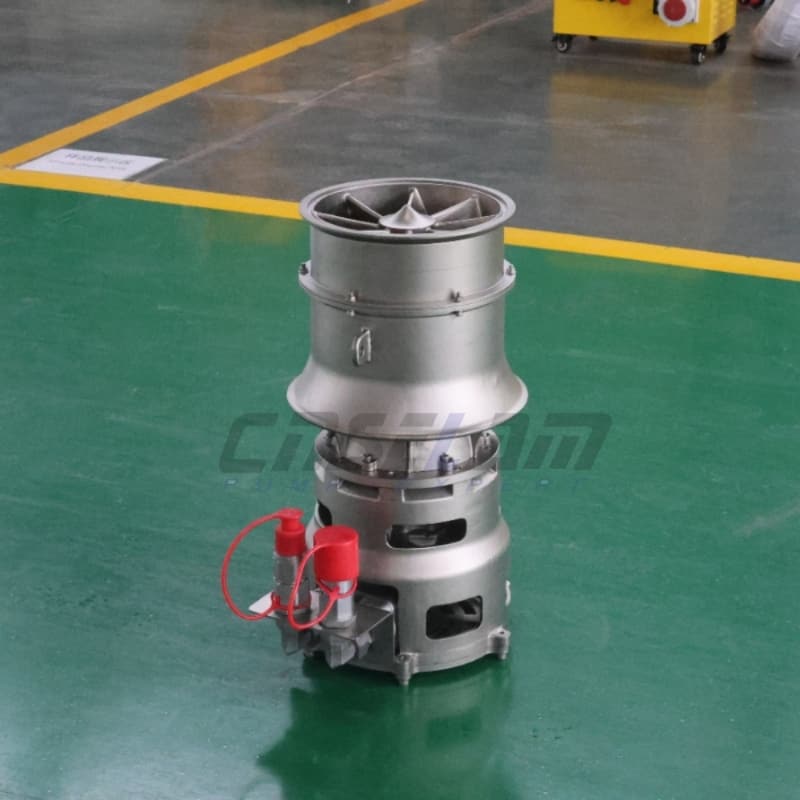

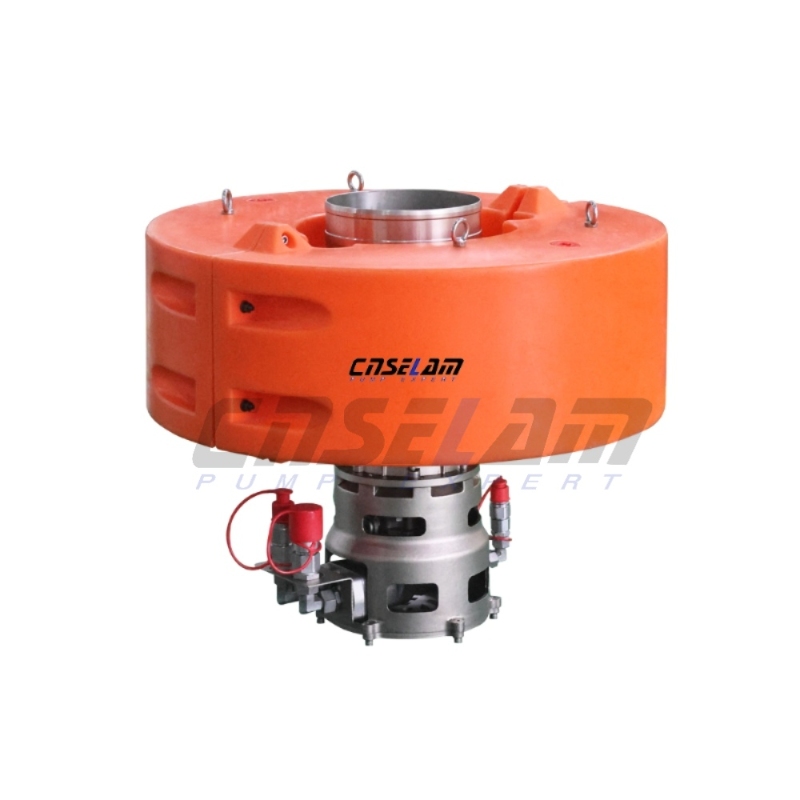

Hydraulic Axial Flow Submersible Pump with Pontoon

CNSELAM HSQWP series large hydraulic axial flow pumps adopt axial flow or semi-open design, and have the characteristics of small size, large flow, stable performance, High impurity pass rate and easy operation.

نموذج :
HSQWP250
قطر المخرج (بوصة) :
10
الحد الأقصى لمعدل التدفق (م³/ساعة) :
600-1000
الحد الأقصى للرأس (م) :
5-10
معدل التدفق الهيدروليكي (لتر/دقيقة) :
160-180
الضغط (بار) :
250-300

استفسر الآن

تفاصيل المنتج

Application

Municipal emergency drainage,urban flood control and drainage,inspection well and sewer pipe cleaning and sewage discharge,construction site drainage:water intake from rivers,ditches,and lakes for drought resistance,fire fighting,water supply,sea water extraction,explosion-proof areas,etc.

Features

（1) Safe and reliable, with no risk of electric shock or explosion;

（2) Dry operation – oil-lubricated mechanical shaft seal;

（3) Hydraulic hose connection allows the pump to maintain a certain distance from the power source, reducing noise pollution to the surrounding environment during operation;

（4) Both the pump outlet and hydraulic quick-connect fittings feature a vertical quick-connect structure, facilitating the installation and disassembly of hydraulic hoses;

（5) The impeller and pump body are made of cast iron, offering corrosion and wear resistance, resulting in more stable and efficient drainage performance.

Specification

Model	Outlet diameter (inch)	Flow rate (m³/h)	Head (m)	Hydraulic flow rate (lpm)	Pressure (bar)
HSQWP150D	6	180-230	6-11	50-60	155-172
HSQWP200D	8	500-600	11-15	60-80	172-180
HSQWP200	8	500-600	5-10	60-80	172-180
HSQWP250	10	600-1000	5-10	160-180	250-300
HSQWP300	12	1000-1200	4-8	160-180	190-230
HSQWP400~HSQWP600	16", 20", 24"	1800-3600	4-8	250-300	220-330
HSQWP750~HSQWP800	30", 32"	4600-7200	2-6	280-300	280-350
HSQWP1000~HSQWP1200	40", 42", 48"	11000-16200	2-5	500-600	280-350
